HARD LANDINGS - Helping pilots better handle the airplane during landing






SOURCE: NTSB and FAA

Advisory Circular 120-71 "Standard Operating Procedures for Flight Deck Crew Members" and Flight Standards Information Bulletins for Air Transport (FSATs) 00-08 and 00-12.



World Intellectual Property Organization (WIPO)

HARD LANDING REPORT BASED ON SINK RATE ALGORITHM


Issue: High sink rate awareness during landing.


Foresight bounce recognition and recovery


Hard or heavy landings are significant high load events that may adversely impact airframe structural integrity. Such landings may result in damage that affects the ability of the aircraft to fly safely. When this happens, repairs must be performed prior to flying the aircraft again.


The inspection process that is required to assess the potential for damage due to a suspected hard landing event is undesirably time consuming.


Studies showed that up to 90% of pilot-initiated hard landing inspections resulted in no finding of damage.


The results of performing unnecessary inspections include undesirably increased labor costs and lost revenues due to the down time of the aircraft.


Study case

Strong pitch up after the second hard touch-down and strong nose-down pitch forces.


Boeing defines hard landings that exceed 12.3 feet per second [fps] or that involve rapid derotation [lowering the nose wheel to the runway after the main gear touches down after the initial touchdown as severe.


  1. ·         Pilot monitoring for high sink rates.
  2. ·         Appropriate timing of the landing flare.
  3. ·         The flare is based on gross weight, temperature and pressure.
  4. ·         Airspeed trend vector is useful tool in determining when to begin to flare.
  5. ·         Aural altitude calls and the radar altimeter.


You don't want that accident investigation final report writes down "the cause of the accident it was the pilot-flying inability to arrest the high rate of descent existing at 50 feet [ft] radio altitude."


"SINK RATE" aural alert from EGPWS [Enhanced Ground Proximity Warning System] it is your first and foremost calling for your attention.


The load factor provided by an air data inertial reference unit AD RU), which is not reliable due to the body-bending response in the fuselage at touchdown.


The ADIRU is located at the forward section of the fuselage and the load factor is mathematically translated to the airplane's center of gravity to determine the load factor value. Data analyses of actual landings from operators have shown that the load factor is an unreliable indicator of a hard landing event.


A false report of a hard landing can result in an unnecessary costly structural inspection and has the potential to delay dispatch of the airplane.


The indication of a hard landing as reported within an airplane condition monitoring function (ACIV1F) is based on data recorded from nose[1]mounted accelerometers, combined and recalculated to correct for the true location of the aircraft's center of gravity.


The sink rate algorithm comprises a second-order complementary filter


followed by a lag time noise reduction (i.e., smoothing) filter. The output main gear vertical sink rate takes into account the landing gear position with respect to the runway surface.


Activation of the sink rate computation occurs at some preset elevation (e.g., 200 feet) above ground level of the wheel carriage as determined by the radio or radar altimeter.


Monitoring continues until a predetermined time (e.g., 2 second) after the point of touchdown.


The sink rate algorithm disclosed herein has application for reporting hard


landings by aircraft of different types. The sink rate algorithm disclosed herein has been adapted for use with models 200 and 300 of the Boeing 777 aircraft.


The sink rate algorithm disclosed herein is based on a design that has been widely used in autopilots.



FIG. 1 shows the main components of a hard landing detection system in accordance with one embodiment of the invention. The ACMF 10 comprises a logic unit for performing the steps of a sink rate algorithm, such as the algorithm depicted in FIGS. 2A[1]2D. The sink rate algorithm outputs a main gear sink rate in response to the inputting of the following parameters: (1) radio altitude (in feet; + is up); (2) pitch attitude (in degrees; + is nose up); (3) body pitch rate (in deg/sec; + is nose up); (4) vertical speed (feet/min; + is up); and (5) vertical acceleration (g; + is up). The ACMF 10 receives radio altitude data from a radio altimeter 14, which is mounted on the airplane. The ACMF 10 receives data representing values of the other four parameters from an ADIRU 12. As will be explained in more detail later, the ACMF also receives data representing the current gross weight of the airplane from a flight management function (FMF) 16.


The sink rate output is smoothed with a quarter-second time constant lag filter to provide a clean, well-behaved estimate of the sink rate during flare and touchdown. This algorithm is currently being used within Flight Controls on the 777 because of its accuracy.


Using the vertical acceleration parameter to calculate sink rate has an advantage over using the vertical speed in that the vertical acceleration is not corrupted by ground effects as the airplane nears the ground.


Ground Proximity Warning System (GPWS)


Mode 4 – Terrain Clearance Not Sufficient (while in landing configuration). Mode 4A and 4B are active during cruise and approach, and Mode 4C is active during go-around. Mode 4A triggers “Too Low Terrain, Too Low Gear” when the landing gear is up, Mode 4B triggers “Too Low Terrain, Too Low Flaps” with flaps not in landing configuration (but landing gear down) and Mode 4C triggers with flaps not in landing configuration OR gear up: “Too Low Terrain”.


Mode 5 – Excessive Descent Below Glide Slope – triggered when the aircraft descends below the glideslope and the aural alert “Glideslope” is triggered.


Note: the above warnings, cautions and callouts differ depending on the aircraft type (and can even differ on the same type of aircraft when different systems are installed).


Enhanced GPWS

Enhanced GPWS (EGPWS) supplements Basic GPWS with a database of terrain and airports, and correlates this with the known position of the aircraft.

EGPWS (or “Predictive GPWS”) has a computer model of the aircraft performance and uses this to create a caution and warning envelope in front of the aircraft, including the ability of the aircraft to climb.

When the Predictive GPWS is operating normally the Basic GPWS Mode 2 (Excessive Terrain Closure Rate) is inhibited. If a failure is detected in the Predictive GPWS, or there is a significant discrepancy between detected rad alt height and the T2CAS altitude, Basic Mode 2 is re-enabled.


On Basic GPWS

Mode 2 – Excessive Terrain Closure Rate: Mode 2 takes into account gear and flap configuration. There are two types of Mode 2 alerts: Mode 2A (active during climb, cruise and initial approach) and Mode 2B (active during approach and 60 secs after takeoff). With landing gear up the warnings are “Terrain”, “Terrain Terrain” and “Pull Up”. With landing gear down, the “Terrain” caution is triggered.

Airbus A320/A330/A340 Predictive GPWS – Warnings and Cautions

The Airbus A320/330/340 aircraft utilize a Terrain Awareness Display (TAD) function which develops a caution and warning envelope in front of the aircraft. The TAD takes into consideration the aircraft’s altitude, nearby runways and the altitude of the runway, together with the aircraft’s speed and turn radius.

When the system detects a threat in the projected envelope it will trigger the relevant GPWS caution and warning callouts (aural alerts).


Adam B733 at Surabaya on Feb 21st 2007, hard landing.

Adam Air Boeing 737-300, registration PK-KKV performing flight KI-172 from Jakarta to Surabaya (Indonesia) with 148 passengers and 7 crew, was approaching Surabaya's runway 28 in thunderstorm rain, visibility 8000 meters. When the aircraft descended through 200 feet AGL the captain called the aircraft was too high and took control, subsequently the Ground Proximity System issued alerts "Pull Up!" and "Sink Rate!" The right hand main gear touched down outside the runway, about 4 meters off the right edge of the runway. The captain steered the aircraft back to the center line of the runway and brought it to a stop about 100 meters short of taxiway N3. Two passengers received minor injuries (backbone pain), the aircraft received substantial damage including a fractured/bent fuselage.







sexta-feira, 6 de agosto de 2021

SHARING OF PILOT RECORDS AMONG PILOT EMPLOYERS – YOU’LL BE UNDER CONTROL




SOURCE: FAA AC No: 120-68J, Pilot Records Database and Pilot Records Improvement Act

Air carriers must begin using the PRD for FAA record evaluations no later than Dec. 7, 2021, and for all other records no later than June 10, 2022. Air carriers must upload historical records starting on June 12, 2023 and no later than Sept. 9, 2024, with the compliance date dependent on the age of the individual historical record.  Until Sept. 9, 2024, it may be necessary to obtain and review pre-hire records using both PRIA and PRD processes.

3.3 PRIA Background. On October 9, 1996, the President approved the Federal Aviation Reauthorization Act of 1996 (the Act). The Act amended 49 U.S.C. to reauthorize programs of the FAA and to effect certain changes, including pilot records. The law is commonly referred to as PRIA and is contained in Section 502 of Public Law (PL) 104-264, Federal Aviation Reauthorization Act of 1996. PRIA was enacted primarily as a result of certain accidents attributable to pilot error. In some of those cases, the subsequent employer found that the pilots had previous histories of poor performance, but the background of these pilots had not been checked. PRIA was amended to make clarifications and relieve air carriers of unnecessary burdens. These amendments to PRIA are in 49 U.S.C. § 44703(h), (i), and (j).

3.3.2 Pilot Records Database (PRD). The Airline Safety and Federal Aviation Administration Extension Act of 2010 (the Act) amended PRIA and required the FAA to create the PRD. The PRD is required to contain pilot records dating from August 1, 2005 for FAA certification events, enforcement records, pilot employment history, training data, and 6/28/21 AC 120-68J 3-2 drug and alcohol testing records. Once the transition period is complete, the PRD will replace PRIA. Until full implementation of the PRD, PRIA remains in effect. Therefore, air carriers and other operators who employ pilots must continue to provide pilot records to an air carrier or air operator seeking information on an individual pilot in accordance with PRIA. PRIA requires air carriers to evaluate all available pilot records prior to making a hiring decision. See paragraph 2.10 for information about how the PRD can be used to comply with portions of PRIA.

3.4.2 Determining Whether PRIA Applies to You When Hiring a Pilot.

Checklist to determine whether PRIA requires you to request records for a pilot.

3.4.2.1 Are you an air carrier or operator conducting operations in accordance with 14 CFR part 91 subpart K (part 91K), 121, 125, or 135?

3.4.2.2 Do you engage in air transportation, as defined in 49 U.S.C. § 40102(a)(5)?

You engage in air transportation if you provide:

6/28/21 AC 120-68J

• Foreign air transportation (flag operation),

• Air transportation on an interstate basis, or

• Transportation of U.S. mail.

Note: Notwithstanding the above comments, all operators should consider voluntarily requesting PRIA records and any other records that may be available.

[…]

3.5 Company Records vs. PRIA Records. Pilot employers typically maintain records that exceed the scope of records to which PRIA applies. Such records are referred to as “company records,” whereas the records maintained and provided by operators in accordance with PRIA are referred to as “PRIA records.” The difference between the record types can easily create confusion among those involved during review.

3.5.1 Company records are events or actions memorialized by an air carrier or operator to document compliance with a statute or regulation or those maintained through a company’s own initiative. These records typically consist of documented training and qualification events, performance, and employment-related activities during the period

6/28/21 AC 120-68J

that an individual is employed by a company as a pilot. Many company records exceed the scope of PRIA.

3.5.2 PRIA records are a collection of company records memorialized by a current or former employer during the previous 5 years from the date of the request that meet the policy outlined in this AC and the requirements of 49 U.S.C. § 44703(h). These records are used to assist an air carrier or operator in making a hiring determination. PRIA records are not forwarded from a receiving air carrier to another requesting air carrier through a future PRIA records request.

3.5.3 When a pilot is seeking employment with an employer that is required to review records in accordance with PRIA, the employer will request records from the pilot’s current and/or previous employers. The previous employers will then assemble copies of the appropriate records for the past 5 years.

3.5.4 Once the company records have been assembled by the current and/or former employers of the pilot applicant, at that point, that subset of company records become PRIA records.

3.5.5 Those PRIA records will be archived and maintained completely separate from the hiring air carrier or operator’s company records. PRIA records received through a PRIA records request should never be actively used again, other than for inspection and review by that company’s Principal Operations Inspector (POI).

3.5.6 PRIA records received as a result of a PRIA records request should never be included in an employer’s own company records when that employer receives a subsequent PRIA records request. The company holding the PRIA records must respond to a PRIA records request only from their company records and never forward another company’s PRIA records as part of the records sharing process.

[…]

3.6.1 Initiation. The hiring employer initiates the process.

3.6.2 PRIA Records Request. Both the pilot-applicant and the hiring employer complete the PRIA records request forms.

3.6.3 Employer. The hiring employer sends the request forms to the:

• FAA,

• National Driver Register (NDR), and

• Current and previous employers.

3.6.4 Response. Respondents answer the PRIA records requests.

3.6.5 Review. All pilots/applicants may review records submitted about them to the FAA, NDR, and current and previous employers.

3.6.6 Evaluation. The hiring employer reviews and evaluates the results.

3.6.7 Records Maintenance. The hiring employer maintains all PRIA-related records.

[…]

3.9 Information for the Pilot-Applicant.

3.9.1 Pilot-Applicant’s Tasks During PRIA Records Request Process. If you are an individual who is applying for a job as a pilot, your hiring employer will initiate the PRIA records request process. Per 49 U.S.C. § 44703(h)(5) and (6), the hiring employer must first notify you in writing that it will request records about you and obtain your written consent by signature.

3.9.1.1 Complete PRIA Records Request Forms.

3.9.1.1.1 The hiring employer or a DA will provide several forms to request

PRIA-related records from the previous 5 years only. You will complete and

sign these forms to grant your consent for the FAA, your previous

employer(s), and the NDR to release your records.

3.9.1.1.2 The Aviation Data Systems Branch will provide information concerning your current airman medical certificate. It will also give information on your current airman certificates indicating level, category, class, and associated type ratings, including any limitations to those certificates and ratings. From the previous 5-year period, the FAA will also summarize any closed legal enforcement actions against you that resulted in findings of violations that were not subsequently overturned. However, the FAA will report any formal

6/28/21 AC 120-68J

closed certificate actions on file, such as suspensions, civil penalties, or

revocations indefinitely.

3.9.1.1.3 The hiring employer will ask your previous employer(s) to provide records pertaining to you, except for those related to flight time, duty time, or rest time. A previous employer will provide records on your performance as a pilot concerning your training, qualifications, proficiency, and professional competence, including any comments or evaluations by check airmen; any disciplinary actions that the previous employer did not overturn; and any release from employment or resignation, termination, or disqualification from employment. Additionally, under PRIA, your former Department of Transportation (DOT)-regulated employer(s) will provide records of drug and alcohol tests performed under 49 CFR part 40, even if the employers were not aviation entities.

3.9.1.1.4 If this is your first job as a pilot, but you were previously subject to DOT-regulated drug and alcohol testing, your hiring employer must request your drug and alcohol test results from your previous employer(s) in accordance with 49 CFR part 40.

3.9.1.1.5 The NDR will furnish your applicable motor vehicle driving records.




quarta-feira, 14 de julho de 2021

FUEL BURN WITH SUCCESSFUL APPROACH Vs. APPROACH WITH A MISSED APPROACH PROCEDURE




Sources: Aeronautical Journal

Amsterdam University of Applied Sciences

Centre for Applied Research on Education

              Alejandro Murrieta Mendoza



École de Technologie Supérieure

         Ruxandra Mihaela Botez



University of Quebec

         Steven Ford



BACKGROUND

The flight computation is divided into two sections:

1. one section for the aircraft traveled distance and

  a 2. second section for the time an aircraft flies under certain flight modes.

Since this method computes the missed approach fuel and emissions contribution, it computes the fuel burn for a given descent approach for a successful landing, as well as for the same descent approach with a missed approach procedure followed by a successful landing.

TWO CASE STUDIES – Approach Landing and Approach Go-Around

These two landing approaches are verified in a complete flight to study the missed approach contribution for a conventional mid-range flight. The results show that a descent with the missed approach procedure requires 5.7 times more fuel than a normal successful descent.

Flight crews can vary their approach procedures and flap selections to match the objectives of flight, which include fuel conservation, noise and emissions reductions.

A practical example was given for the departure of an Airbus A340-600 to demonstrate how the methodology could help airspace designers and airport authorities to implement noise-reduction procedures.

The Continuous Descent Approach (CDA) is a promising operations procedure to reduce noise and fuel consumption. The CDA is a descent technique in which, instead of the conventional step descent that requires engine thrusts, a constant descent slope is followed, setting the aircraft engines to the IDLE mode, and thus requiring very little thrust.

Various parameters, such as the Top of Descent (TOD) location, weight, and wind are required to correctly execute the CDA. In, a number of 70 descents each in Boeing 757 and Airbus 319/320 aircraft were used to apply multiple regression and estimated the TOD location as a linear function of the available predictive factors.

Some problems that can cause a landing procedure to be aborted are:

§      Unexpected traffic in the runway: Aircraft that are unable to take off on time and are still on the runway, aircraft flying close to the runaway, more rapid traffic overtaking the landing being performed, etc.

     Errors and misjudgements in the approach: Flying too high or too low on the final approach, flying too fast or too slow, overshooting the final approach start point, etc.

       Incorrect landing: Excessive bouncing at landing.

   Wind effects: A sudden change in the crosswinds, a wind direction or speed different than the expected wind direction and speed, problems with the automatic weather broadcast, etc.

     The cloud ceiling below the published minimum altitudes.

     Flight visibility below published instrument approach procedures minimums.

   This procedure is expensive for airlines as it normally requires high amounts of fuel. According to Boeing, the fuel required for a missed approach procedure can burn up to 28 times the fuel consumed during a normal landing procedure.

It is clear that executing this procedure increases the fuel requirements for a given flight which would reduce profits to operators such as airlines.

A cost calculation methodology in terms of fuel and emissions that can justify the development of products and services, which would be implemented in low computation devices such as the Flight Management System (FMS).

Calculating the cost of a missed approach is needed in order to optimize aircraft trajectories and save fuel while following a given missed approach procedure.

Climb/Cruise/Descent (CCD) and Landing to Take-Off (LTO).

The landing procedure waypoints and the missed approach waypoints must be defined in order to utilize this methodology. The waypoints for a descent are published in the instrument approach procedure charts, which the pilot should be familiar with to carry out the selected landing sequence.

Each waypoint must have the correct information: altitude, flight speed, and distance between the current waypoint and the next.

Instrument approach procedure chart for Runway 13R (Current Chart 14R)





Instrument approach procedure chart for Runway 13R (Current 14R) of Boeing field in Seattle.

By definition, the CCD and the LTO modes are separated at the level of 3,000 ft in altitude.

An airplane is in the CCD mode when it is located at an altitude equal to or above 3,000 ft.

If the airplane is located at another waypoint below 3,000 ft, then it is in the LTO mode.

The procedure of a missed approach is the following:

The airplane starts to fly in the CCD mode at the initial waypoint (WPT) of the descent procedure found in the approach plan. It starts to descend, passing through all the WPTs in the CCD mode, eventually reaching 3,000 ft; below this altitude, the airplane enters into the LTO mode and continues to descend until it reaches the point where the pilot must make a decision to either land or execute the missed approach procedure.

This “decision point” is considered to be the Missed Approach Point (MAP) for non-precision approaches or the Decision Altitude (DA) for precision approaches.

If the pilot judges that a safe landing can be performed, the airplane lands and the flight ends; otherwise, the missed approach procedure is executed from that point instead of landing. In this case new steps are followed to execute the missed approach procedure.

In the first missed approach procedure step, the pilot set the engines to Take Off Go Around (TOGA), which means that the engines will be at their maximum power for the airplane to gain altitude and arrive at the required altitude in accordance with the IAP. The airplane will then follow different WPTs in the LTO mode, with the engines in a normal operation mode. Eventually the airplane will come back to the CCD mode, until it reaches a safe holding zone. Then, when traffic conditions allow it, ATC will assign the airplane a return vector and the pilot will try to land again. The airplane will follow this vector, which is normally within the limits of the CCD mode. Eventually the airplane will enter the LTO mode again to begin the landing approach.

Climb/Cruise/Descent CCD mode

In order to perform the required calculations in the CCD mode, the total distance traveled in this mode must first be determined. This can be accomplished by verifying all the consecutive WPTs of the defined trajectory and then calculating the CCD distance travelled.

If two consecutive WPTs exist within the CCD mode limits, then the distance value is saved as an accumulative variable. This variable, which will eventually contain the total distance traveled in CCD mode, will be used to calculate the parameters of interest such as Fuel burned, Nitrogen Oxides (NOx), the Emissions Index of Nitrogen Oxide (EINOx), Hydro Carbons (HC), the Emissions Index of Hydrocarbon (EICH), Carbon Monoxide (CO) and the Emissions Index of Carbon Monoxide (EICO).



It is important to note that not all of the consecutive WPTs will be in the CCD mode – for some points will be located in the LTO mode.

If all the WPTs are within the CCD limits, the total distance travelled in the CCD mode can also be expressed in the following way:

Total distance in CCD = WPT 1 to WPT 2 distance + WPT 2 to WPT 3 distance + WPT 3 to WPT 4 distance + … so on.

Depending on the total nautical miles traveled in this mode, an interpolation or an extrapolation of the distance may be needed. If the CCD distance is greater than 125 nm, an interpolation of the distance in the tables provided by the EIG is required. This distance of 125 nm was chosen as the lower limit because it is the smallest distance in CCD mode given in the EIG consumption tables. Nevertheless, the distance traveled in the landing approach procedure in the CCD mode is usually less than 125 nm.

Since the EIG tables do not have values below 125 nm, a vector must be created, for which the first distance is not 125 nm but 0[zero] nm, and the fuel consumption at 0 nm is considered to be 0[zero] kilograms (kg). This vector makes it possible to interpolate from 0 nm to the maximal distance value available in the EIG tables for a specific aircraft. As an example, for the values of the distance and fuel consumption parameters of the Boeing 737-400, our vectors of distance and fuel are represented in the following two equations:

Distance (nm)=[0 125 250 500 750 1000 1500 2000]

And

Fuel consumption (kg)=[0 777.7 1442.6 2787.4 4134.9 5477.2 8362.3 11342.2]

With these vectors, a polynomial of interpolation of a given order can be used to calculate the fuel consumption as a function of distance. In this paper, the polynomial of order 8 was selected because 8 was the lowest order where the real values were almost the same as the interpolated values.



Polynomial interpolation function versus real data

In Figure above, the polynomial function is traced versus the real data expressed by equations (1.2) and (1.3). It can be seen that there is no error, because the polynomial function superposes over the real data.

To find the values of polynomial coefficients for the fuel consumption as a function of the distance x, the Matlab function polyfit was applied. The resultant polynomial Fuel(x) for the Boeing 737-400 is shown below:

(1.4) equation.

The fuel consumption dependency with the distance is obtained by solving the polynomial function expressed in eq (1.4) for the distance x value; the fuel (kg) was thus calculated for the CCD mode.

Polynomials of order 8 are found for each parameter of interest: Fuel, NOx, EINOx, HC, EICH, CO and EICO. The polynomials created for the variation of these parameters with distance for the Boeing 737-400 are described by the following equations:

Landing to Take-off LTO mode

Three different phases can be identified in the LTO mode:

®      Approach Landing,

®      Climb Out and

®      Take-off Go Around or TOGA.

All these phases occur during a missed approach procedure. According to the International Civil Aviation Organization (ICAO), the three phases of an LTO mode have fixed reference times, given in Table 1. These reference times are provided in the EIG, in FAA Advisory Circular 34-1B and in the ICAO 2013 Environmental Report among others.



In order to identify in which phase an airplane is located between two WPTs, the following definitions of these phases must be considered:

Approach Landing: The WPT (n-1) is at the same or higher altitude than the WPT (n)

Climb Out: The WPT (n-1) is at a lower altitude than the WPT (n).

Take-off Go Around TOGA: At the Decision Altitude (DA), the pilot determines if the landing procedure should be aborted, therefore the missed approach procedure should start.

In a successful approach, where no missed approach procedure is executed, the Approach Landing phase is the only phase considered for the LTO calculation, since in a successful landing; the aircraft is not supposed to climb or to perform a TOGA. If an airplane needs to climb, that indicates that either the aircraft is leaving airport A on its way to airport B or that the airplane is performing a missed approach procedure.

After the LTO mode has been determined, the time traveled is calculated using the speed of the airplane and the distance between WPTs. This time is saved as an independent accumulation variable for two LTO phases: approach landing and climb out.

The Take-off/TOGA time value is always considered to be 0.7 minutes, since in this acceleration phase it is complicated to determine the exact speed of the aircraft. The time saved in the accumulation variables is multiplied by the parameter of interest per minute, determined from the tables using the ICAO reference times given in Table 1, thereby providing the fuel consumption.

As an example, the quantity of fuel burnt in an Approach Landing phase of 6 minutes is calculated as follows:

In accordance with Table 1, the reference time for an Approach Landing phase is 4 minutes. Looking at Table 2, regardless of the flight distance, the fuel burnt during the Approach Landing phase is 147.3 kg for this particular aircraft. By dividing 147.3 kg by 4 minutes, it appears that the aircraft burns 36.825 kg. of fuel per minute during this phase. Thus, the quantity of fuel burnt in 6 minutes during the Approach Landing phase can be found by multiplying the quantity of fuel burnt times the total time in this phase, or 6 minutes times 36.825 kg/min, for a total of 220.95 kg.


Crossover calculations

It is important to note that the crossover concept does not refer to the typical IAS/Mach speed change due to the altitude, in which the pilot has to change the speed reference from IAS to Mach. The crossover in this here refers to the changes in the 3,000 ft threshold that separates the LTO mode from the CCD mode. During the missed approach, at least three crossover situations are referred to:

 1. The zone below 3,000 ft where descent is performed prior to landing;

 2. Climb out over 3,000 ft after the abortion of the landing procedure at the MAP (or DA) to wait in the holding pattern for a returning vector to land; and

 3. Descent again below 3,000 ft in order to land after coming back from the holding pattern.

 It is important to separate the CCD and the LTO modes during all crossover situations, as in those described above.

A constant slope is considered in the descending or ascending path followed during the crossover situation. When the airplane is at the initial distance Dist (n-1), it is at the WPT (n - 1) at altitude ALTWPT (n - 1). At the final distance Dist (n), the airplane is at the WPT (n) at the altitude ALTWPT (n). Figure 4 shows the variation of the altitude with the distance while descending.


The number of nautical miles (nm) needed to travel from the current altitude (ALTWPT (n - 1)) at the WPT (n - 1) to arrive at the crossover altitude in the LTO or CCD mode is determined using eq. (1.11). If the aircraft is descending, the distance (nm) is found in the CCD mode, if the aircraft is in the climbing out stage, the distance (nm) is found in the LTO mode. Equation (1.11) is valid only when the WPT (n) altitude is lower than the WPT (n-1) altitude. A similar equation is used when the WPT (n) is higher than the altitude of WPT (n-1).

Full flight cost calculation

A hypothetical full flight distance from the end of the LTO mode during taking off from Airport A to the first waypoint of the landing approach procedure at Airport B is considered in order to calculate a missed approach’s additional cost with respect to the entire flight’s cost. Using the distance of the hypothetical full flight route, the polynomials (1.4) – (1.10) can be solved for this particular case to find the parameter(s) of interest.



To calculate the LTO modes during take-off, the values of interest contained in the EIG tables and shown above in Table 2 are taken directly from these tables, assuming the standard reference times given by ICAO and shown above in Table 1. The take-off and climb out phases are accounted for and it is assumed that the fuel and emissions values in the EIG are the values of this LTO mode.

Once the distance of the full flight route cost has been determined and the LTO cost obtained, these costs are added together to obtain the full flight cost for each parameter of interest.

Note that the approach landing phase in the take-off section is assumed to be equal to zero (0). This value is zero because when the airplane is leaving an airport, it is not supposed to descend at all, as that would mean the airplane is arriving at the airport instead of leaving it.



In the CCD mode, three different flight phases are combined into one phase: climb, cruise and descent. In a normal flight, more fuel is spent during the climb phase than in cruise mode, and in cruise mode, more fuel is spent than in descent.

The method presented here does not take into account the differences between these varying levels of consumption and assumes that all three phases considered in the CCD mode comprise one big phase that is only a function of distance. These differences are not considered here because of the lack of that type of detailed data in the literature.

Final calculations

The next step consists of carrying out the calculation presented above. The costs for a missed landing approach and for a successful landing approach are generated. Next, each is added to the full flight costs and the cost difference between these two situations is calculated. The two flights thus evaluated are:

1) full flight with a missed landing approach followed by a successful landing, and

2) full flight with a successful landing.

Results

The results shown here are obtained for the flight plan cost of a short flight with a successful first attempt landing and the same short flight with a missed approach procedure followed by a successful landing. The short flight distance from Take-off to the first approach plate waypoint is 650 nm. The standard atmospheric conditions are considered.



The Landing and missed approach procedure

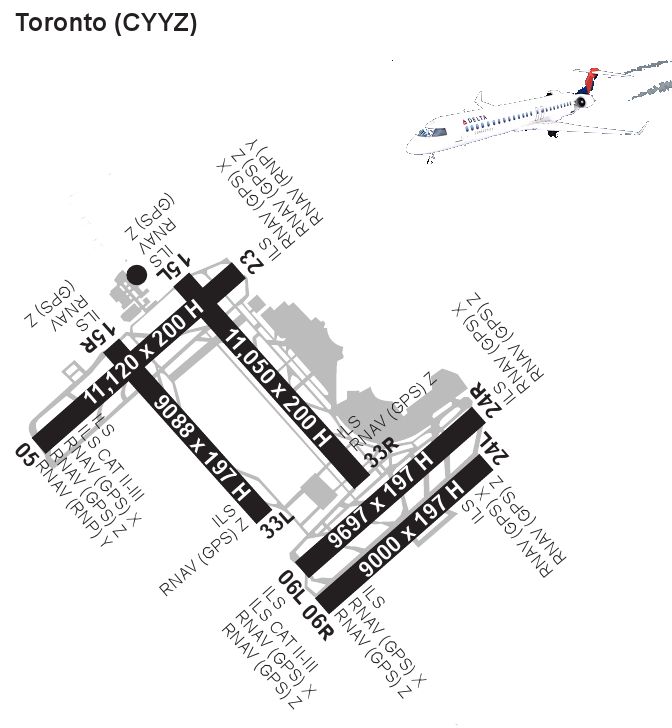

The landing approach simulated as proposed by our industrial partner is shown in Figure 1. Table 3 shows the waypoints to be followed for a successful landing and Table 4 is the flight plan (waypoints) for a landing with a missed approach procedure followed by a successful landing. Altitudes are expressed in Mean Sea Level (MSL). In these tables, the ID refers to the sequence on which the waypoint was visited, the waypoint name is the name provided to that waypoint, altitude is the altitude at which the waypoint should be fly by at, the distance refers to the distance to the next waypoint, speed refers to the speed at which the aircraft should fly from the given waypoint, and mode shows the flight mode of considered for that waypoint.

The increased complexity of the flight plan in Table 4 compared to that of Table 3 is obvious; the number of waypoints to be followed by the aircraft to execute the missed approach procedure increase substantially. It is interesting to observe that during the execution of a successful landing sequence (Table 3) the aircraft does not perform any climb. Table 4 is much more complex. The missed approach procedure is expressed following the WPTs ID 5: “RNP 0.3” to ID 17 “RWY 13”. Point ID 8 is the safe holding cruise (4 turns were executed); this is the place where the aircraft waits for a return vector (a trajectory to intercept one of the points of the IAP) from ATC.

Once the returning vector is provided, the waypoint that shows the exit from the holding zone is WPY ID 9: “BLAKO (exit)”. WPYs ID 10: “AUBURN” to ID12: “SEATACII” represent the returning vector. WPT ID 13: “JUGOK” is the interception of the IAP flight plan. Note that WPTs ID 14: “JAMRO” to ID 17: “RWY 13” in Table 4 coincides with waypoints ID 3: “JAMRO” to ID 6: “RWY13” in Table 3.



Fuel burned and emissions comparison between a conventional landing and a landing after a missed approach

 The first sets of results in Table 5 and Table 6 present a successful landing procedure following the flight plan in Table 3. The second set of results show a missed approach procedure followed by a successful landing; these follow the flight plan in Table 4. The comparison between the two different landing sequences is presented in Table 7.

In Table 5 and Table 6, some values are not available and are indicated with “n/a”. These values were impossible to compute due to the lack of information. For example, in the LTO mode for the phase TOGA, in Table 5 (row 4, column 4), the speeds for the TOGA during the flight time of 0.7 seconds are not known, therefore it was impossible to calculate the distance in nm. In the CCD mode of Table 6, the flight time was not calculated (row 6, column 4) because the cruise speed is unknown, however it was possible to calculate fuel consumption because this phase is a function of distance.



During the execution of a successful landing without a missed approach in Table 5, as expected, there were neither climb outs nor TOGA flight phases because the aircraft should always be descending. However, in Table 6, the crew needs to climb out to execute the missed approach procedure. Table 7 is a comparison of landings with and without a missed approach procedure.


The missed approach burns 5.7 times more fuel than a successful approach. The extra fuel burned augments the contaminant emissions of CO2, NOx, HC, EINOx, EIHC, and EICO. This difference can be explained in terms of the existence of a TOGA and a climb out phase during the missed approach procedure in Table 6. Both flight phases consume a great quantity of fuel, especially while flying at low altitudes. Flying a cruise phase at low altitude was also required. This small cruise phase was given by ATC in the form of a vector to intercept the landing path to the runway after the missed approach.

 Because the landing is rigidly defined by the IAP, the only opportunity to reduce the fuel consumed by the procedure has to come from ATC delivering friendly (and timely) intercepting vectors, and/or by developing speed controllers to efficiently manage speed to demand the least possible thrust.


It is clear that missing an approach is expensive in terms of time and fuel for an airline, and that the extra emissions released to the environment are high -- 4.83 lbs of CO (Table 5, row 4, column 8) for one particular flight (to specify just one emission). In the hypothetical case developed above, executing the missed approach costs 5.7 times more fuel (Table 7, row 5, column 2) than carrying out the successful approach, and this cost is only expressed in terms of fuel. If the Cost Index (determines the flight time cost) is taken into account, due to the number of extra hours flown and the extra fuel burnt, the total cost in dollars is even higher.
